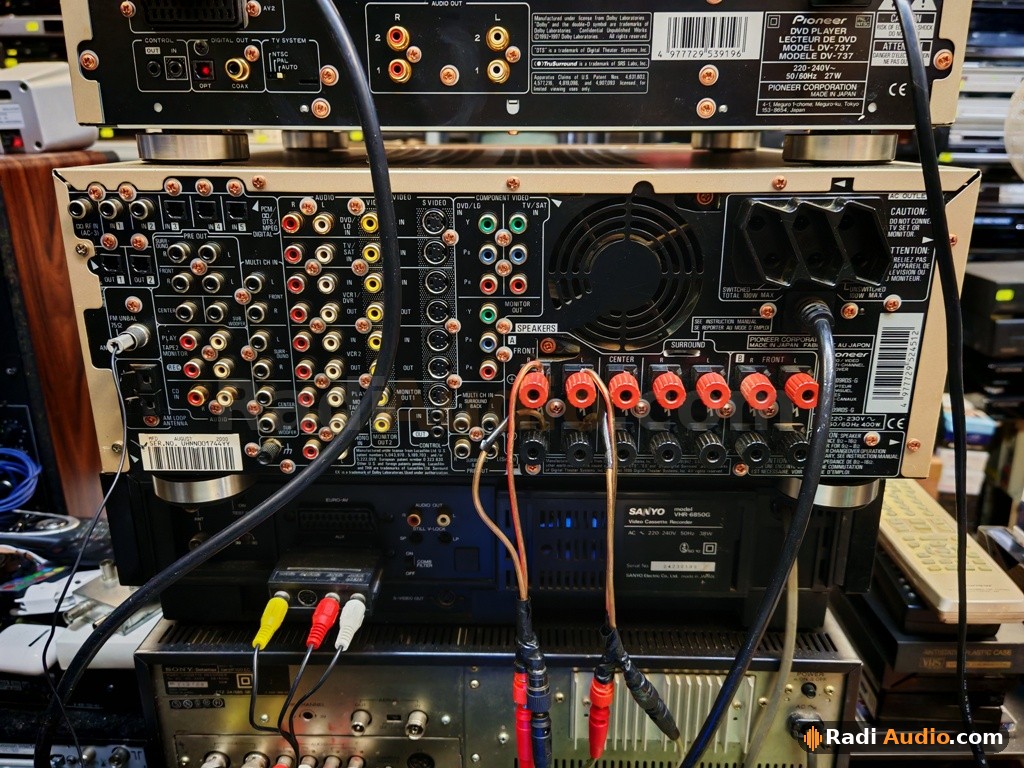

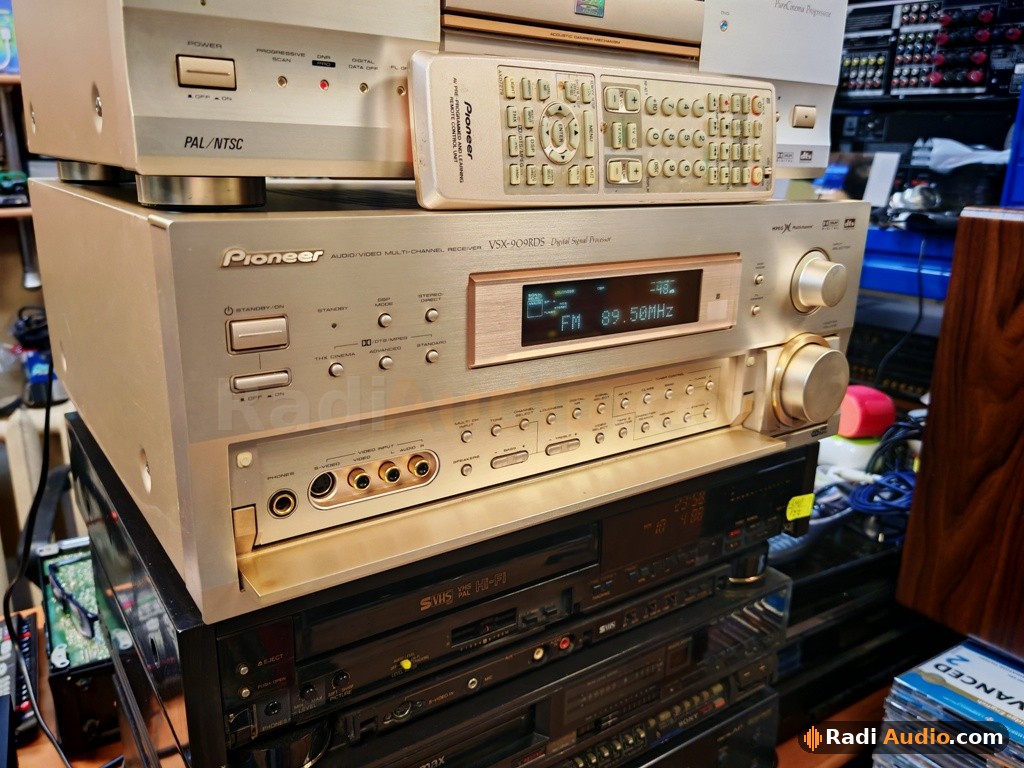

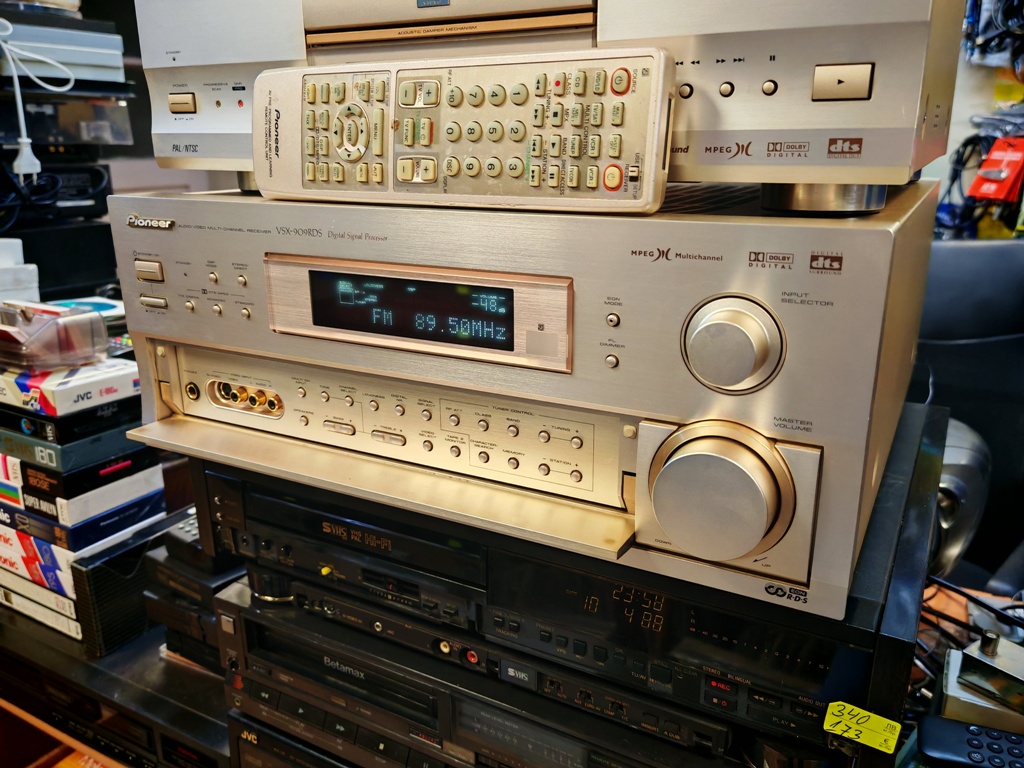

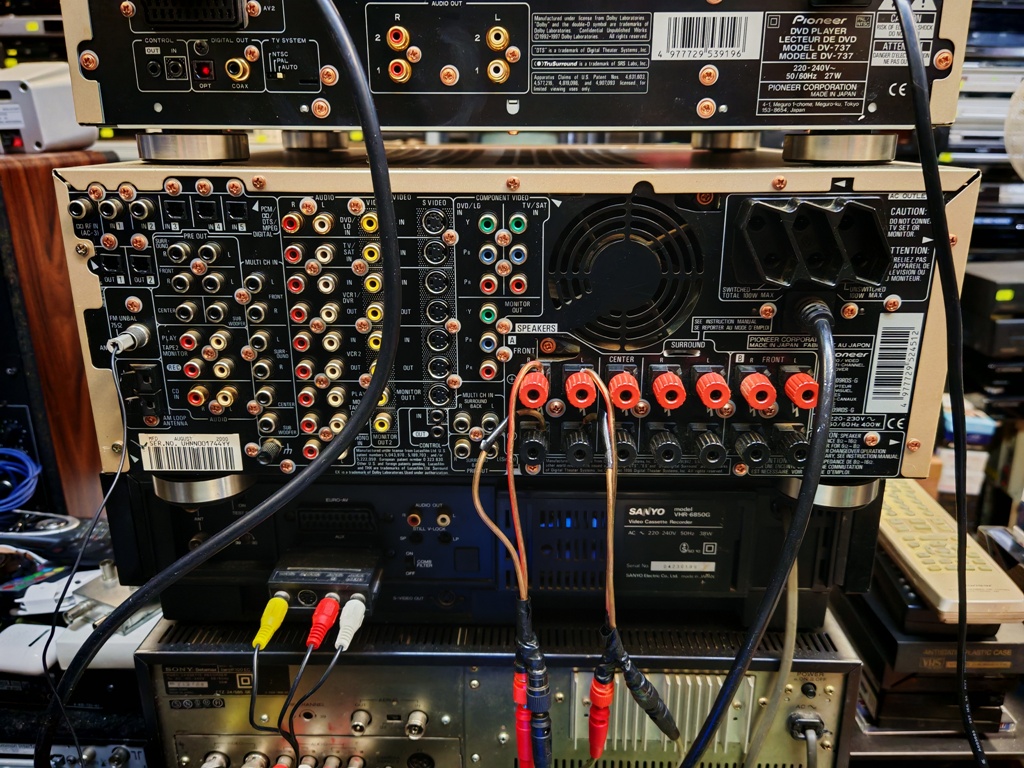

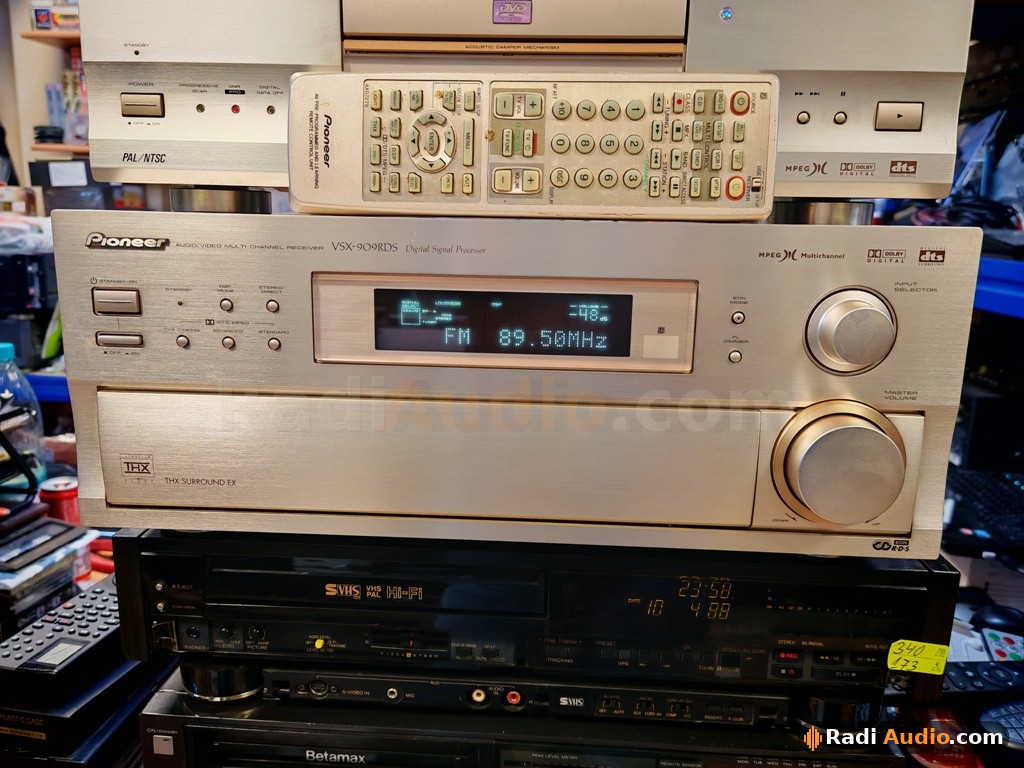

PIONEER VSX-909RDS

Amplifier Section Continuous Power Output (STEREO MODE) FRONT .... 110 W + 110 W (DIN 1 kHz, THD 1 %, 8Ω) Continuous Power Output (SURROUND MODE) FRONT .... 110 W + 110 W (DIN 1 kHz, THD 1 %, 8Ω) CENTER ................. 110 W (DIN 1 kHz, THD 1 %, 8Ω) SURROUND ....................................... 110 W + 110 W (DIN 1 kHz, THD 1 %, 8Ω) Rated Power Output .............................. 100 W + 100 W (20 Hz to 20 kHz, THD 0.09 %, 8Ω) • Above specifications are applicable when the power supply is 230V. Audio Section Input (Sensitivity/Impedance) PHONO MM .......................................... 4.7 mV/47 kΩ VCR 1/DVR, VCR 2, DVD/LD, TV/SAT, VIDEO, CD, MD/TAPE 1/CD-R, TAPE 2 ..................... 335 mV/47 kΩ Frequency Response PHONO MM ........................ 20 Hz to 20 kHz ±0.3 dB VCR 1/DVR, VCR 2, DVD/LD, TV/SAT, VIDEO, CD, MD/TAPE 1/CD-R, TAPE 2 ..... 5 Hz to 100,000 Hz dB Output (Level/Impedance) VCR 1/DVR REC, VCR 2 REC, MD/TAPE 1/CD-R REC, TAPE 2 REC ............................................ 335 mV/1 k Ω Tone Control BASS ................................................... ± 6 dB (100 Hz) TREBLE ............................................... ± 6 dB (10 kHz) LOUDNESS ........................... +10 dB (100 Hz/10 kHz) Signal-to-Noise Ratio (IHF, short circuited, A network) PHONO MM ...................................................... 80 dB VCR 1/DVR, VCR 2, DVD/LD, TV/SAT, VIDEO, CD, MD/TAPE 1/CD-R, TAPE 2 ................................ 101 dB Signal-to-Noise Ratio [DIN Rated/50mW] PHONO MM ................................................. 68/61 dB VCR 1/DVR, VCR 2, DVD/LD, TV/SAT, VIDEO, CD, MD/TAPE 1/CD-R, TAPE 2 ............................. 92/65 dB Phono Overload Level (T.H.D. 0.1%, 1 kHz) PHONO MM ................................................... 120 mV Video Section Input (Sensitivity/Impedance) ........................ 1 Vp-p/75 Ω Output (Level/Impedance) ............................ 1 Vp-p/75 Signal-to-Noise Ratio .............................................. 65 dB Frequency Response ..................... 5 Hz to 10 MHz dB Component Video Section Input (Sensitivity) .......................................... 1 Vp-p/75 Ω Output (Level/Impedance) ............................ 1 Vp-p/75 Ω Signal-to-Noise Ratio .............................................. 65 dB FM Tuner Section Frequency Range ......................... 87.5 MHz to 108 MHz Usable Sensitivity ...... Mono: 15.2 dBf, IHF (1.6 µV/75 Ω) 50 dB Quieting Sensitivity ....................... Mono: 20.2 dBf Stereo: 41.2 dBf Sensitivity (DIN) ...................... Mono: 1.1 µV (S/N 26 dB) Stereo: 50 µV (S/N 46 dB) Signal-to-Noise Ratio ................. Mono: 76 dB (at 85 dBf) Stereo: 72 dB (at 85 dBf) Signal-to-Noise Ratio (DIN) .......................... Mono: 62 dB Stereo: 58 dB Distortion ...................................... Stereo: 0.6 % (1 kHz) Alternate Channel Selectivity ................. 70 dB (400 kHz) Stereo Separation ...................................... 40 dB (1 kHz) Frequency Response ................ 30 Hz to 15 kHz (± 1dB) Antenna Input .......................................75 Ω unbalanced AM Tuner Section Frequency Range .......................... 531 kHz to 1.602 kHz Sensitivity (IHF, Loop antenna) ......................... 350 µV/m Selectivity ............................................................... 30 dB Signal-to-Noise Ratio .............................................. 50 dB Antenna ...................................................... Loop antenna Miscellaneous Power Requirements UK model ...................................... AC 230 V, 50/60 Hz European model ................... AC 220 - 230 V, 50/60 Hz Power Consumption ............................................. 400 W Power Consumption in Standby mode .................. 1.0 W AC Outlets (except for the UK model) SWITCHED (×2) ...............................Total 100 W MAX. UNSWITCHED ........................................ 100 W MAX. Dimensions .................. 420 (W) × 173 (H) × 470 (D) mm Weight (without package) .................................... 16.2 kg Furnished Parts FM wire antenna ............................................................1 AM loop antenna ............................................................1 “AA” IEC LR6 batteries ................................................. 2 Remote control unit ....................................................... 1 Operating Instructions ................................................... 1
